Functional characteristics Product parameters
Type:
YT43PS-S-FA
LCD screen size:
43 inch
Luminance (cd/m2):
2000
Display area H*V(㎜2):
941*529mm
Resolution:
3840*2160(4k)
player:
Main chip RK3288 eight core, memory: 2G, storage: 8G
Cooling system:

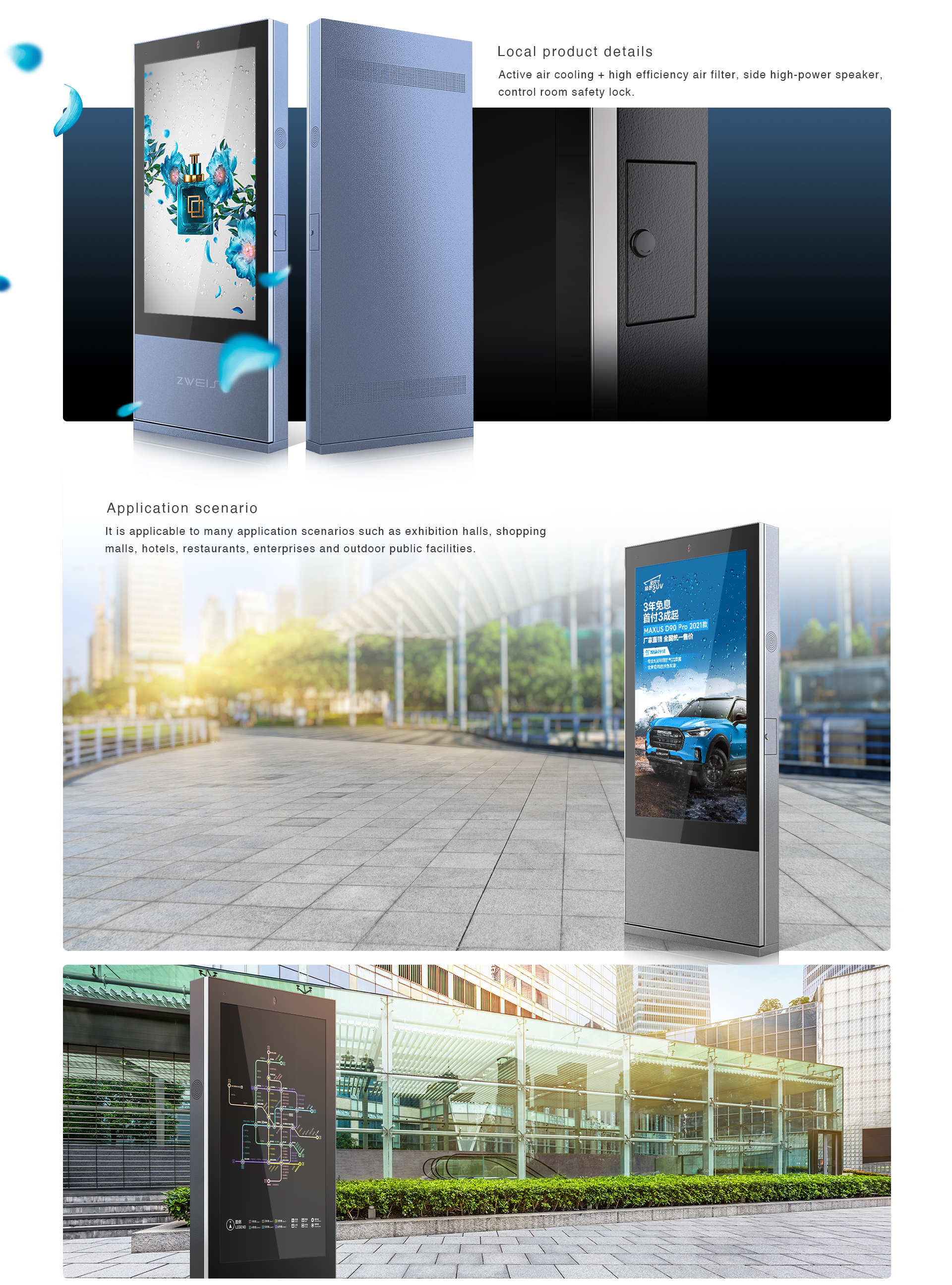

Forced air cooling + high efficiency air filter
Work temperature(℃):

-20~50 (environment temperature is lower than - 10 ℃, the cabinet needs to be equipped with heating system)


Environment humidity:
10%~95%RH
Water and dust proof:

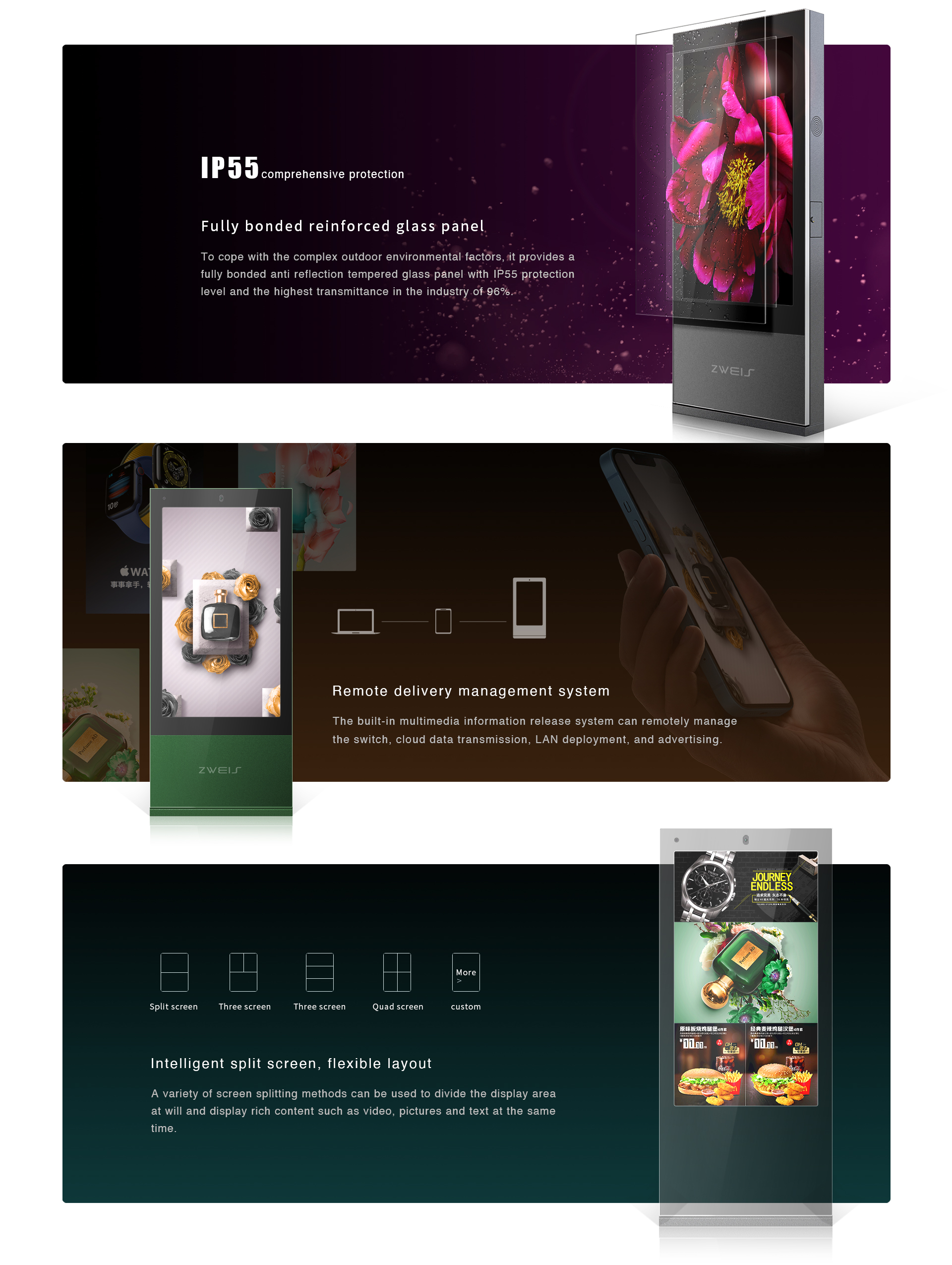

IP55
Safety:

Leakage, overload, overvoltage protection, lightning protection, over temperature protection

Altitude(m):
0~2000
Ratedvoltage:
AC110V±10% 50/60Hz / AC220V±10%50/60Hz

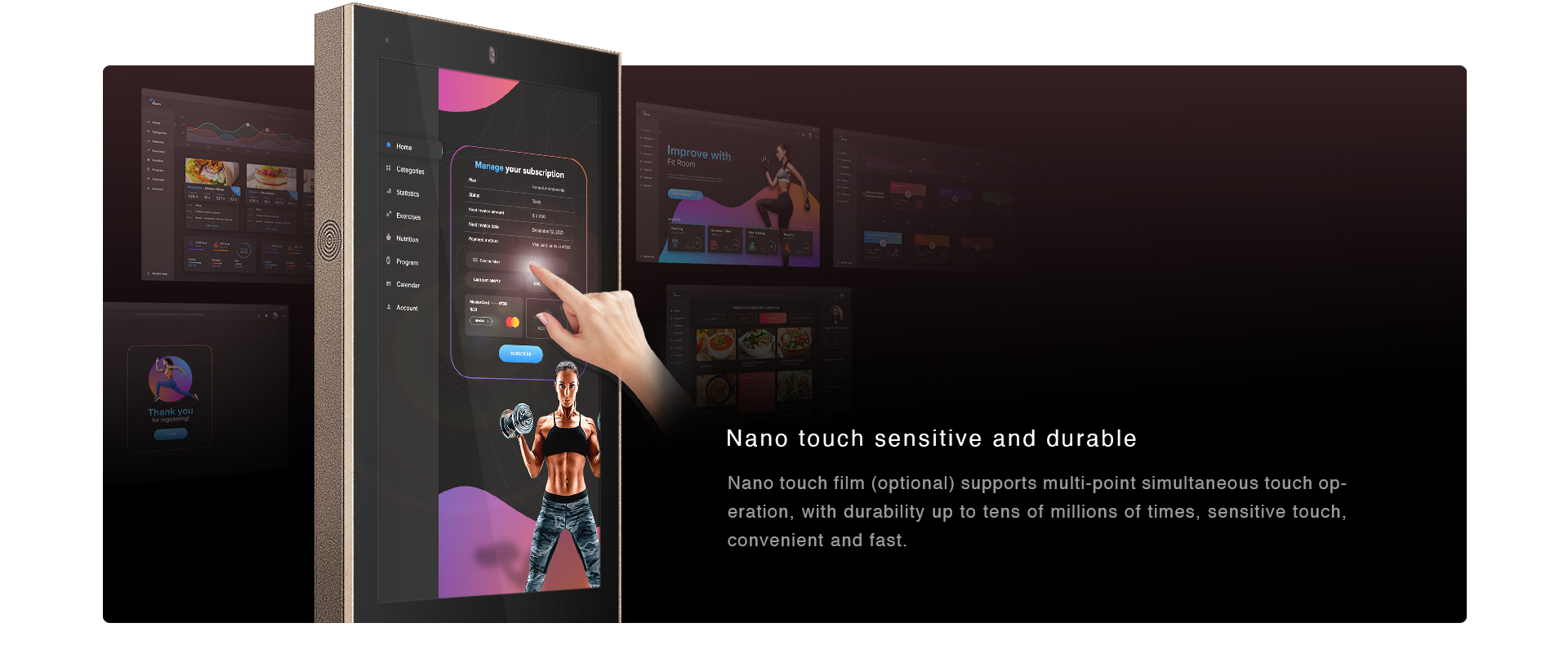

Touch method:

Nano touch film (optional)

Ratedcurrent(A):
≤2.4
Rated power(W):
≤280
Grounding resistance(Ω):
≤0.1
Storage temperature(℃):
-20~60

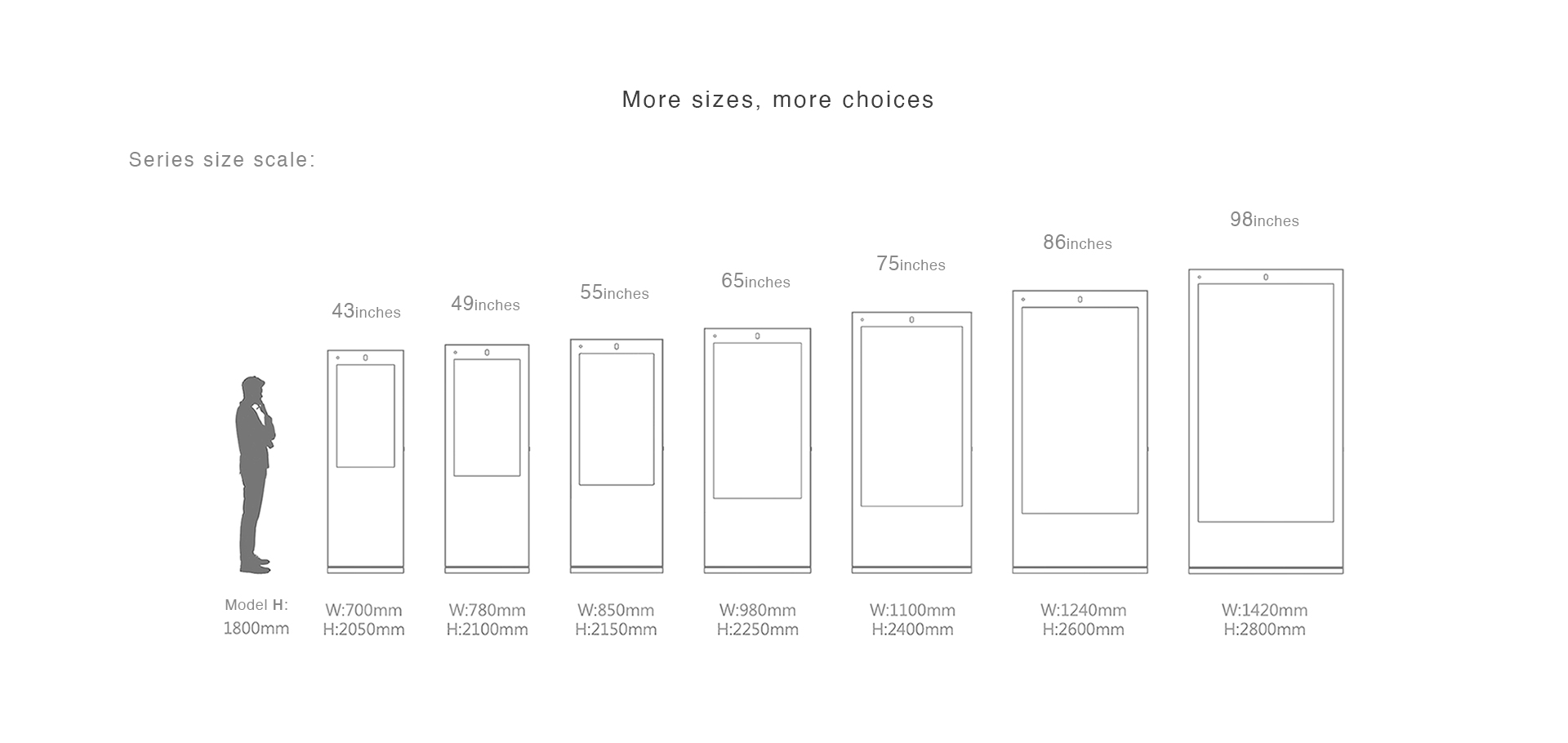

Equipment Size:
2050*700*175mm
Glass:

AR tempered glass

Open the door:

Front door

Type:
YT49PS-S-FA
LCD screen size:
49 inch
Luminance (cd/m2):
2000
Display area H*V(㎜2):
1074*604mm
Resolution:
3840*2160(4k)
player:
Main chip RK3288 eight core, memory: 2G, storage: 8G
Cooling system:
Forced air cooling + high efficiency air filter
Work temperature(℃):

-20~50 (environment temperature is lower than - 10 ℃, the cabinet needs to be equipped with heating system)


Environment humidity:
10%~95%RH
Water and dust proof:
IP55
Safety:

Leakage, overload, overvoltage protection, lightning protection, over temperature protection

Altitude(m):
0~2000
Ratedvoltage:
AC110V±10% 50/60Hz / AC220V±10%50/60Hz
Touch method:

Nano touch film (optional)

Ratedcurrent(A):
≤2.4
Rated power(W):
≤320
Grounding resistance(Ω):
≤0.1
Storage temperature(℃):
-20~60
Equipment Size:
2100*780*175mm
Glass:

AR tempered glass

Open the door:

Front door

Type:
YT55PS-S-FA
LCD screen size:
55 inch
Luminance (cd/m2):
2500
Display area H*V(㎜2):
1210*680mm
Resolution:
3840*2160(4k)
player:
J1900 dual core processor/memory: 2G/hard disk: 320G;
Cooling system:
Forced air cooling + high efficiency air filter
Work temperature(℃):

-20~50 (environment temperature is lower than - 10 ℃, the cabinet needs to be equipped with heating system)

Environment humidity:
10%~95%RH
Water and dust proof:
IP55
Safety:

Leakage, overload, overvoltage protection, lightning protection, over temperature protection

Altitude(m):
0~2000
Ratedvoltage:
AC110V±10% 50/60Hz / AC220V±10%50/60Hz
Touch method:

Nano touch film (optional)

Ratedcurrent(A):
≤2.4
Rated power(W):
≤380
Grounding resistance(Ω):
≤0.1
Storage temperature(℃):
-20~60
Equipment Size:
2150*850*175mm
Glass:

AR tempered glass

Open the door:

Front door

Type:
YT65PS-S-FA
LCD screen size:
65 inch
Luminance (cd/m2):
2500
Display area H*V(㎜2):
1428.4*803.5mm
Resolution:
3840*2160(4k)
player:
Main chip RK3288 eight core, memory: 2G, storage: 8G
Cooling system:
Forced air cooling + high efficiency air filter
Work temperature(℃):

-20~50 (Environment temperature is lower than - 10 ℃, the cabinet needs to be equipped with heating system)

Environment humidity:
10%~95%RH
Water and dust proof:
IP55
Safety:

Leakage, overload, overvoltage protection, lightning protection, over temperature protection

Altitude(m):
0~2000
Ratedvoltage:
AC110V±10% 50/60Hz / AC220V±10%50/60Hz
Touch method:

Nano touch film (optional)

Ratedcurrent(A):
≤2.4
Rated power(W):
≤380
Grounding resistance(Ω):
≤0.1
Storage temperature(℃):
-20~60
Equipment Size:
2250*980*175mm
Glass:

AR tempered glass

Open the door:

Front door

Type:
YT75PS-S-FA
LCD screen size:
75 inch
Luminance (cd/m2):
2500
Display area H*V(㎜2):
1652.4*930mm
Resolution:
3840*2160(4k)
player:
CPU: Intel Core I5/I3-3470 3.6GHz, memory: 4GB SO-DIMM DDR3, storage: SSD: 120G
Cooling system:
Forced air cooling + high efficiency air filter
Work temperature(℃):

-20~50 (environment temperature is lower than - 10 ℃, the cabinet needs to be equipped with heating system)

Environment humidity:
10%~95%RH
Water and dust proof:
IP55
Safety:

Leakage, overload, overvoltage protection, lightning protection, over temperature protection

Altitude(m):
0~2000
Ratedvoltage:
AC110V±10% 50/60Hz / AC220V±10%50/60Hz
Touch method:

Nano touch film (optional)

Ratedcurrent(A):
≤2.4
Rated power(W):
≤460
Grounding resistance(Ω):
≤0.1
Storage temperature(℃):
-20~60
Equipment Size:
2400*1100*200mm
Glass:

AR tempered glass

Open the door:

Front door

Type:
YT86PS-S-FA
LCD screen size:
86 inch
Luminance (cd/m2):
2500
Display area H*V(㎜2):
1860.48*1046.5mm
Resolution:
3840*2160(4k)
player:
CPU: Intel Core I5/I3-3470 3.6GHz, memory: 4GB SO-DIMM DDR3, storage: SSD: 120G
Cooling system:
Forced air cooling + high efficiency air filter
Work temperature(℃):

-20~50 (environment temperature is lower than - 10 ℃, the cabinet needs to be equipped with heating system)

Environment humidity:
10%~95%RH
Water and dust proof:
IP55
Safety:

Leakage, overload, overvoltage protection, lightning protection, over temperature protection

Altitude(m):
0~2000
Ratedvoltage:
AC110V±10% 50/60Hz / AC220V±10%50/60Hz
Touch method:

nano touch film (Optional)

Ratedcurrent(A):
≤2.4
Rated power(W):
≤880
Grounding resistance(Ω):
≤0.1
Storage temperature(℃):
-20~60
Equipment Size:
2600*1240*200mm
Glass:

AR tempered glass

Open the door:

Front door
